Cat Ladder Installation - Guide & Fixings

Cat ladder installation, fixing brackets and bolt kits from the factory that built your ladder. Pre-drilled, bolt-on assembly with hand tools, full installation instructions and compliance documents included — quote within 24 hours.

Get My Cat Ladder Quote Chat on WhatsApp

Bolt-On, Hand Tools Only OSHA 1910.28 EN ISO 14122-4 DoC & MTC Included

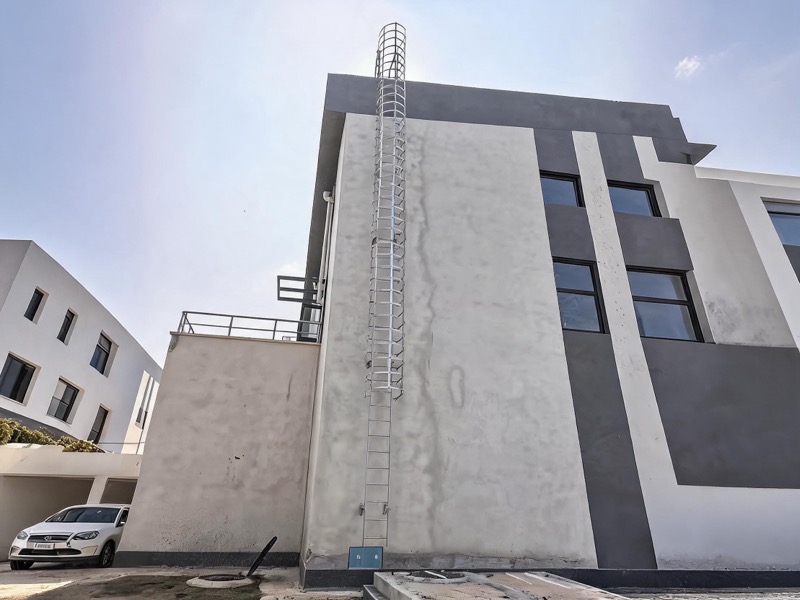

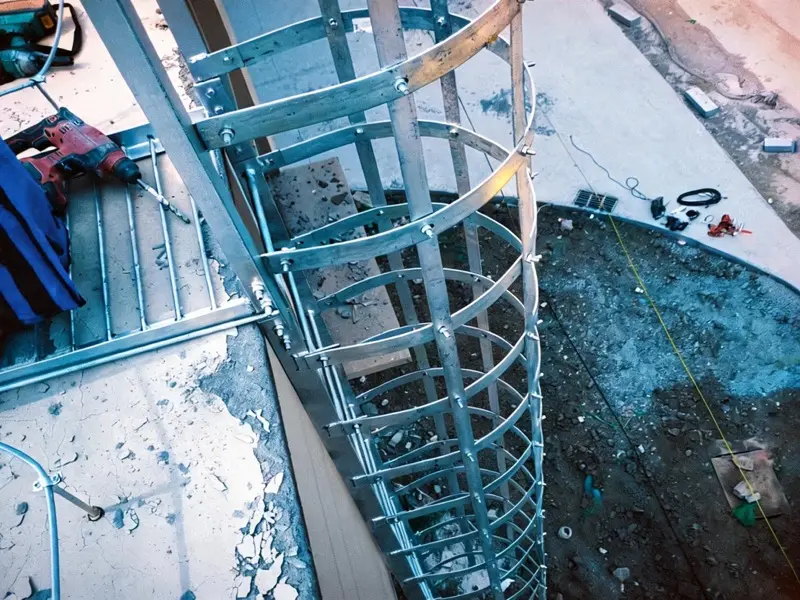

Cat ladder installation on site at Dengtai

20+

Years Manufacturing

50+

Countries Exported

24h

Quote Response

20+

Years Manufacturing

Cat Ladder Installation by Topic

Cat Ladder Installation Guides & Instructions

From step-by-step installation instructions to fixing brackets, bolt kits and requirements — everything you need to fit your cat ladder safely and compliantly. An access route that fails inspection means stop-work orders and retrofit scaffolding at site rates.

Cat Ladder Installation

Bolt-on supply with manual, video and remote support on every order

View Installation

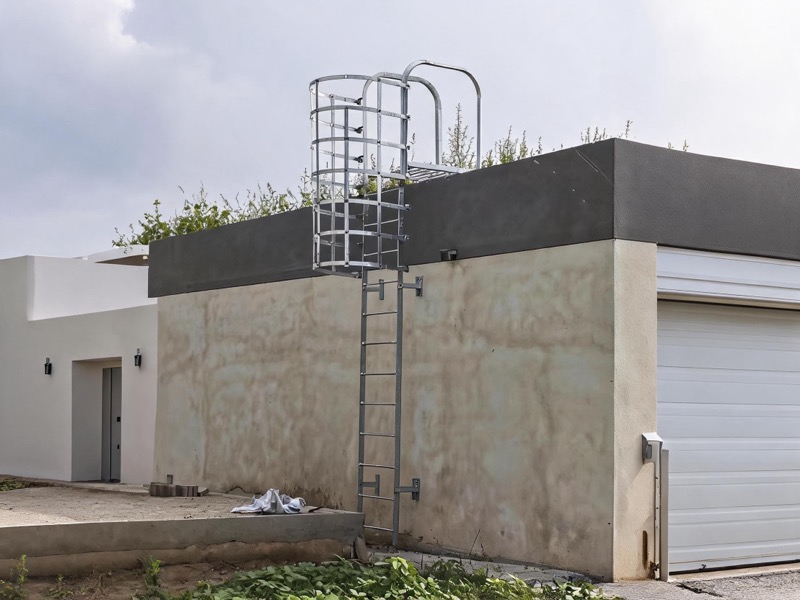

Step-by-step cat ladder installation instructions detail

Step-by-Step Install Guide

Pre-drilled, hand-tool assembly sequence documented in full

View Install Guide

Fixing Brackets

Wall standoffs, parapet brackets and roof hooks for any mounting point

View Fixing Brackets

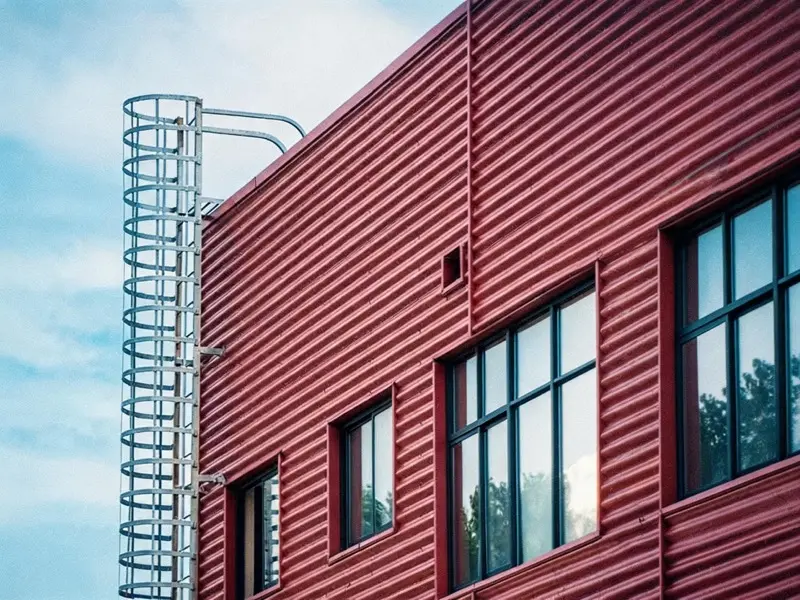

Cat ladder bolt kits lifted into position during installation

Bolt Kits & Fixings

SS304 bolts, anchor bolts and couplers shipped with every order

View Bolt Kits

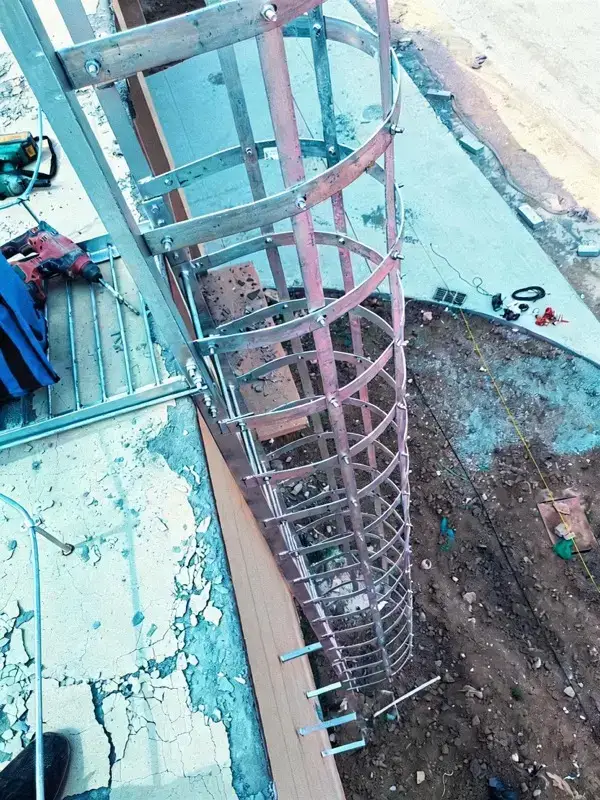

What ships inside the cat ladder installation kit

What's in the Install Kit

Packing list, anchor plan, torque sheet and manual in three languages

View Install Kit

Installation Requirements

OSHA 1910.28 & EN ISO 14122-4 installation specs and site requirements

View Requirements

Fixing Brackets & Bolt Kits

Brackets, Hooks & Bolt Kits for Every Mounting Point

Every bracket, hook and bolt kit is fabricated in the same Shijiazhuang factory as our cat ladders, so hole centres, stile spacing and material grades always line up. No on-site drilling, no guessing.

Cat ladder wall standoff bracket fixing detail

Wall Standoff Brackets

Laser-cut 6 mm plate in Q235B HDG or SS304. Standard standoffs 150, 200 and 250 mm — bespoke offsets machinable.

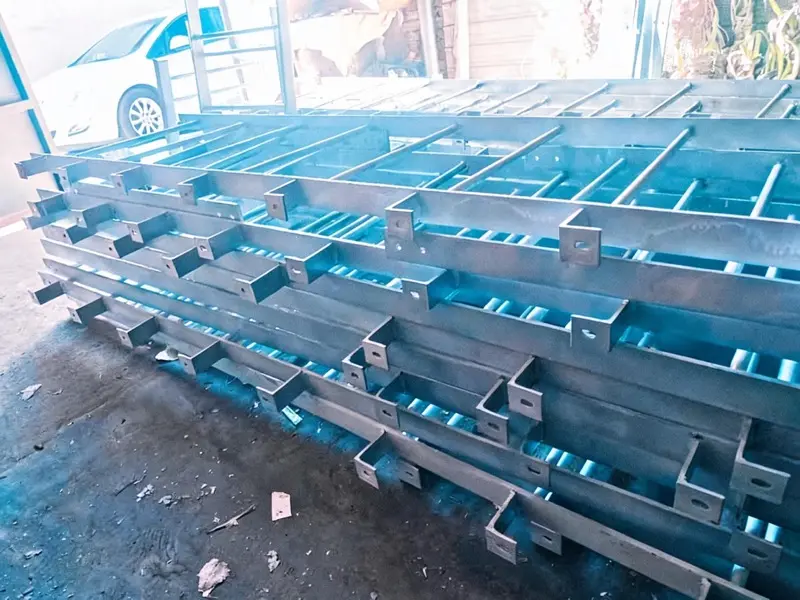

Cat ladder roof and ridge hooks on an assembled ladder

Roof & Ridge Hooks

Full-height welded lugs rated to match the ladder's 1.5 kN rung load, for parapet, ridge and roof edge mounting.

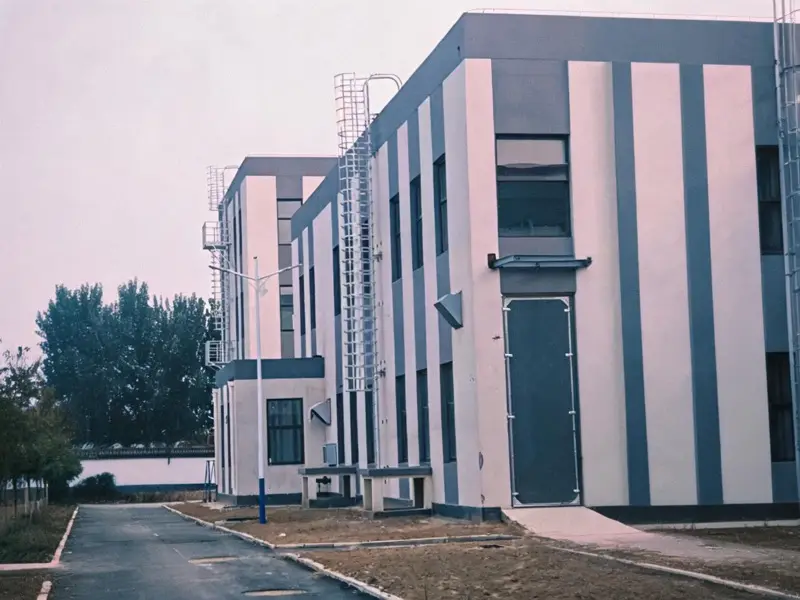

Cat ladder SS304 bolt kit and fixing assembly components

Bolt-On Fixing Kits

SS304 M10–M12 bolt kits, anchor bolts and couplers — trial-assembled and jig-checked before galvanizing.

Browse All Brackets & Fixings →

Cat Ladder Installation Service

Who Bolts It Up — Choose Your Installation Mode

Because every ladder is bolt-on with hand tools, installation is a choice, not a dependency. The three modes below cover how our customers actually get ladders mounted — pick the one that matches your crew and your calendar.

Self-install with drawings
Installation drawings, anchor bolt patterns, bolt lists and manual per order
Video + remote guidance
Configuration-specific video and an engineer on call at key moments
Arranged installation
Factory or partner crews quoted with the order for tight shutdowns and tall builds

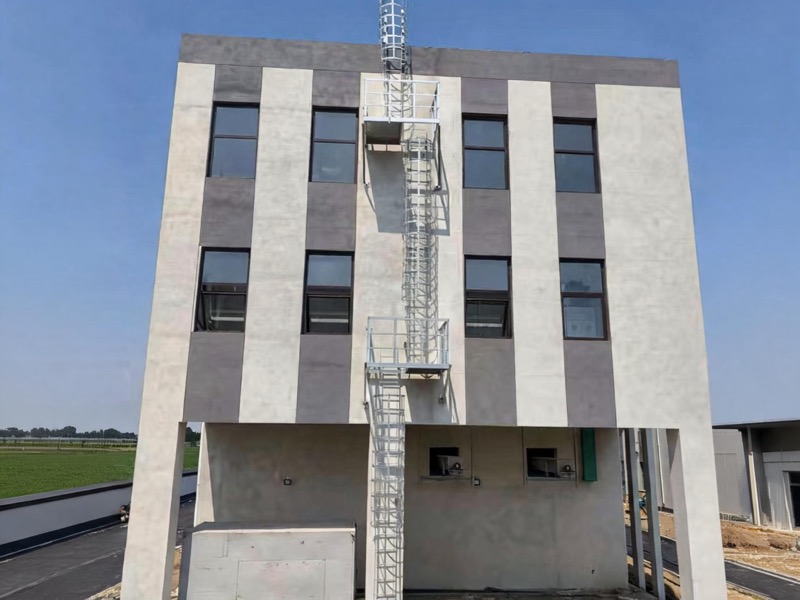

Cat ladder installation service on a modern building

Professional install in North America adds a significant per-system line item — the same anchor plan lets your own crew keep that work in-house.

Specifications

Cat Ladder Installation Specifications

Every cat ladder is engineered to the parameters below and ships with the compliance file to prove it — fit it right, first time, and pass inspection without rework.

Get My Cat Ladder Quote

Specification	Value
Rung Load	1.5 kN per rung
Rung Spacing	225–230 mm uniform
Fixing Spacing	≤1500 mm centres
Max Single Section	25 m (rest platforms above)
Material	Q235B HDG 85–100 µm · SS304 · SS316 · Aluminium · GRP
Finish	HDG ISO 1461 · acid-pickled stainless
Standards	OSHA 1910.28 · EN ISO 14122-4 · BS 4211 · AS 1657
Compliance Docs	DoC + MTC 3.1 + structural calcs, included

Install Day, Hour by Hour

A 6 m Cat Ladder, Two Crew, Half a Shift

Pre-assembly turns installation into bolting. Here is the real sequence your crew follows from the anchor plan in the crate.

Hour	Crew Action	Document In Hand
0:00–0:30	unload, lay out sections against the packing list	packing list + trial-assembly photos
0:30–1:30	mark and drill anchor points per layout	anchor plan (M12 layout for your substrate)
1:30–3:00	stand stiles, bolt standoff brackets, torque to spec	torque sheet
3:00–4:00	bolt rungs and cage hoops, fit gate or exit options	assembly drawing
Done	sign off against the acceptance checklist	installation acceptance checklist

Get a Cat Ladder Installation Quote

Free quote in 24 hours + free compliance kit with every order. Tell us your climb height, quantity and mounting points — we handle the rest.

24h itemized quote
Free drawing review
DoC, MTC & structural calcs included
Production in 15–25 working days

Ladder Material

+ More specifications (height, quantity, cage, standard)

Climb Height

Quantity

Cage / Fall Protection

Compliance Standard

Company

Name *

Work Email *

Phone / WhatsApp

Requirements (optional)

Your info is safe. No spam, unsubscribe anytime. Privacy

Cat Ladder Installation FAQ

How hard is a cat ladder to install?

Our cat ladders are bolt-up systems — stiles, rungs and brackets are pre-drilled and trial-assembled at the factory, and every order includes a step-by-step installation guide plus a free drawing review. Two installers with standard hand tools can typically fit a 6 m ladder with safety cage in under a day.

What brackets and bolt kits come with the installation?

Every order includes wall standoff brackets (150, 200 or 250 mm), roof or ridge hooks as specified, and SS304 M10–M12 bolt kits with anchor bolts. Fixings are spaced at no more than 1500 mm centres and rated to match the ladder's 1.5 kN per rung load.

Do you supply installation drawings and compliance documents?

Yes — free drawing review before production, and every order ships with a Declaration of Conformity (DoC), an EN 10204 MTC 3.1 material certificate and engineer-signed structural calculation sheets, all at no extra cost.

Can you arrange cat ladder installation service?

Yes — we can quote factory or partner installation crews with your order for tight shutdowns, tall builds or projects without a local crew. Your side provides site access, permits and an anchor-ready structure. For budgeting, see our cat ladder price guide.

What does the fitting crew receive in the box?

A packing list, anchor plan, torque sheet and installation manual in three languages, plus the SS304 bolts, anchor bolts and couplers shipped with every order. Because the ladder is pre-drilled and bolt-on, the crew fits with hand tools from the paperwork provided — nothing sourced on site.

Can my own crew install the ladder?

Yes — every ladder is bolt-on with hand tools, so installation is a choice, not a dependency. Your crew works from the installation drawings and the configuration-specific video, with an engineer on call at key moments; factory or partner crews are quoted with the order only when you want them.

Which bracket types suit my mounting point?

Wall standoff brackets, parapet brackets and roof hooks cover the common mounting points, cut from 6 mm plate in Q235B HDG or SS304 with standard standoffs of 150, 200 and 250 mm — bespoke offsets machinable. Full-height welded lugs are rated to match the ladder's 1.5 kN rung load.

How long does supply take before fitting can be scheduled?

The quote lands within 24 hours, and production runs 15–25 working days from the approved drawing. Orders ship EXW, FOB or CIF, and the anchor plan and torque sheet travel with the goods — so the fitting can be scheduled the week the container arrives.

Are spare brackets and bolts available after handover?

Yes — spare rungs, brackets and gates are available as running spares, matched to your original stile spacing from a photo. That keeps a bolt-on access route serviceable for decades: replace the worn part, keep the climb, with engineer confirmation within 24 hours.
