Custom Cat Ladders, Made to Your Drawings

Custom Cat Ladder Process - Made To Order

Custom cat ladders built to your drawings — CAD/DWG/PDF reviewed free, itemized quote in 24 hours, production in 15-25 days. Structural calcs, MTC 3.1 and DoC included.

Send My Cat Ladder Drawings Chat on WhatsApp

Free Drawing Review OSHA & EN ISO Up to 25 m Single-Run NDA Friendly

Custom cat ladder assembled at the factory

Steps, Fully Transparent

24h

Quote Response

25 m

Max Single Run

15-25

Days Production

Custom Cat Ladder Process - 6 Steps

From requirements to QC and shipping — a clear, audit-ready path for every made-to-drawing cat ladder order.

Requirements

Share climb height, material, environment and access needs — or start with a drawing. A photo of the roof and a rough sketch is enough.

Drawings

Send CAD, DWG or PDF — whichever your design team has on hand. Email attachments are fine, no special portal needed.

Free Review

Structural and dimensional review against OSHA 1910.28 / EN ISO 14122-4, plus rung spacing and fixing-spacing checks.

Quote

24h itemized quote including an engineer-signed structural calculation sheet for your configuration.

Production

15-25 day fabrication to the approved drawing — with 5-stage QC and trial assembly before packing.

QC & Ship

QC file with photos, ISPM 15 export packing, container loading photographed, then documents issued per your Incoterm.

Send Your Drawings

Custom Cat Ladder Drawings - Free Review

CAD, DWG or PDF all work. Our engineers review geometry, structure and compliance for free — before you commit to anything.

Send My Cat Ladder Drawings

CAD / DWG / PDF Accepted
Send as email attachments with your inquiry — no special portal needed.
Free Drawing Review
Structural, dimensional and compliance check against OSHA 1910.28 / EN ISO 14122-4 before any pricing commitment.
No Drawing? No Problem
Describe the climb and site and we prepare a recommended cat ladder configuration for your approval.

Custom Heights, Materials & Configurations

Height, material and form are not limited — including 25 m single-run cat ladders we have built and shipped.

Any Height, Multi-Run

Up to 25 m in a single run; multi-run systems with rest platforms for higher climbs.

Full Material Range

Q235B hot-dip galvanized (HDG 85-100 µm to ISO 1461), SS304/SS316 with grade verification, aluminium and GRP/FRP.

Form Configurations

Caged sections, platforms, walk-throughs, wall-mounted runs, cage-free sections and side-step exits combined freely.

Engineered, Documented

Structural Calculations for Custom Cat Ladders

Every custom order ships with an engineer-signed structural calculation sheet, an MTC 3.1 material certificate and a Declaration of Conformity — so your drawings are backed by numbers.

Structural Calculation Sheet
Engineer-signed, project-specific — free with every order.
MTC 3.1 & DoC
EN 10204 3.1 material certificate plus Declaration of Conformity to your standard.
OEM/ODM NDA
Drawings and IP protected; NDA signed before we see your files.

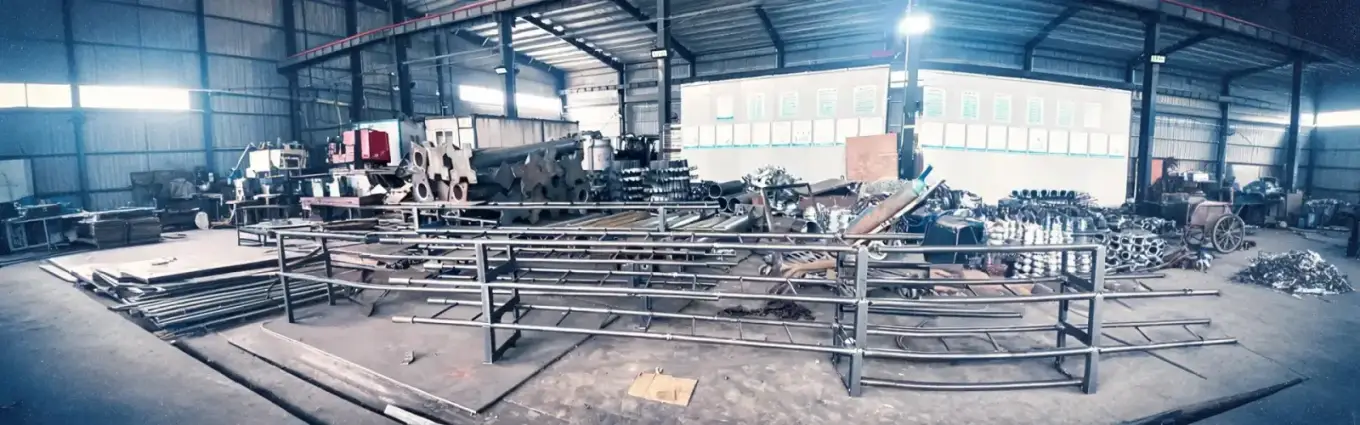

Custom cat ladder fabrication - factory production line

Specifications

Custom Cat Ladder Specifications

Every made-to-drawing cat ladder is engineered to the parameters below — measured to your climb and site.

Specification	Value
Material	Q235B HDG 85-100 µm (ISO 1461) · SS304 · SS316 · Aluminium · GRP/FRP
Rung Load	1.5 kN per rung
Rung Spacing	225-230 mm
Fixing Spacing	≤1500 mm centres
Max Single Run	25 m (rest platforms beyond)
Coating	HDG ISO 1461 · acid-pickled stainless
Standards	OSHA 1910.23/28 · EN ISO 14122-4 · BS 4211 · AS 1657

Custom Cat Ladder Projects, Built to Drawing

Built to Drawing, Shipped Worldwide

50+ export countries since 2004. Three made-to-drawing cat ladder orders from the shop floor.

25 m custom cat ladder tank access project with crane work

25 m Tank Access

25 m tank access built in two bolted runs with a rest platform at 12 m. Drawings revised twice at the review stage — at zero cost.

SS316 stainless cat ladder installed on a coastal plant tank

SS316 Coastal Plant

Eight sets of SS316 cat ladders with grade verification for a chemical plant on the coast, supplied with bolt-on fixings and full compliance files.

Container Export

Mixed HDG and SS304 order, one 40 ft container, knock-down packing, shipped CIF to a UK distributor.

Reference pricing: factory-direct per-metre rates quoted itemized ex-works — material, machining, finishing and packaging line by line, typically well below US catalog equivalents. See our price guide for what drives cat ladder cost per metre. Your itemized quote lands in 24 hours.

Send My Cat Ladder Drawings for Review

Send My Cat Ladder Drawings for a Custom Quote

Our engineers reply within 24 hours with a drawing review, structural notes and an itemized quote. Your drawings are confidential — NDA available on request.

Free drawing review
24h quote with structural calcs
NDA-friendly OEM/ODM

Ladder Material

+ More specifications (height, quantity, cage, standard)

Climb Height

Quantity

Cage / Fall Protection

Compliance Standard

Company

Name *

Work Email *

Phone / WhatsApp

Requirements (optional)

Free quote · Free drawing review · No obligation

Your details stay confidential — used only to prepare your quote, never shared.

Custom Cat Ladder Process FAQ

What drawing formats do you accept?

CAD, DWG or PDF — email attachments are fine. If you don't have drawings, we can build from a requirements description or a photo of your site.

What does the free drawing review include?

Structural and dimensional review against OSHA 1910.28 / EN ISO 14122-4, plus manufacturability, coating and fixing-spacing notes.

How long does custom cat ladder production take?

Typically 15-25 working days after drawing approval and deposit confirmation.

Are my drawings kept confidential?

Yes — OEM/ODM NDA is available on request, and drawings are used only to build your order.

What documents are issued before shipping?

Before dispatch the QC file with photos is completed and documents are issued per your Incoterm: a Declaration of Conformity, an EN 10204 3.1 material certificate, the HDG coating report to ISO 1461 and engineer-signed structural calcs — free with every order.

How are custom cat ladders packed for export?

ISPM 15 export packing as standard, with container loading photographed and filed in the QC record. Packing follows the project — knock-down or assembled — and mixed orders such as HDG and SS304 ladders in one 40 ft container are loaded to the agreed plan.

Can the process handle non-standard heights?

Yes — heights to 25 m in a single run have been built and shipped, and multi-run systems with rest platforms cover higher climbs. The free drawing review that confirms the height split happens inside the 24-hour quote, before you commit to anything.

What if my drawings change after the review?

Revisions at the drawing review stage are free — the 25 m tank access case above went through two revisions at zero cost before production locked. Once fabrication starts, changes are assessed by the engineer against the cutting schedule, so send revisions early.
