RoofCatLadderFactory-Direct Cat Ladder With Platform
Cat Ladder With Platform
Cat ladders with intermediate platforms — custom heights, HDG steel. Cage, walkway and safety gate options sized to your climb height, with OSHA 1910.28 & EN ISO 14122-4 compliance docs included on every order.
Years Manufacturing
Countries Exported
Quote Response
Years Manufacturing
Cat Ladder With Platform — Configurations & Options
Cat Ladder With Platform, Built to Your Access Layout
A cat ladder with platform pairs the fixed vertical access ladder with a rest platform and the fall-protection pieces your height requires. Cage, walkway and gate options are sized to the climb height and the governing standard. An access route that fails inspection means stop-work orders and retrofit scaffolding at site rates.
- Safety cage, Φ700 mm from 2.2 m
Hoops and bar pitch to our factory build spec, added when the climb needs fall protection
- Intermediate rest platform at ≤25 m
Chequer-plate deck with kick plate and 1.1 m guardrail to split long vertical climbs
- Walkway & handrail transitions
Double handrail, toe plate and fall-arrest line options between platform landings
- Self-closing landing gate
Gate swings shut automatically at every platform exit, bolt-on to the platform frame
Safety Cage
Φ700 mm hoops starting 2.2 m above the base — first hoop height, hoop spacing and bar pitch to our factory build spec.

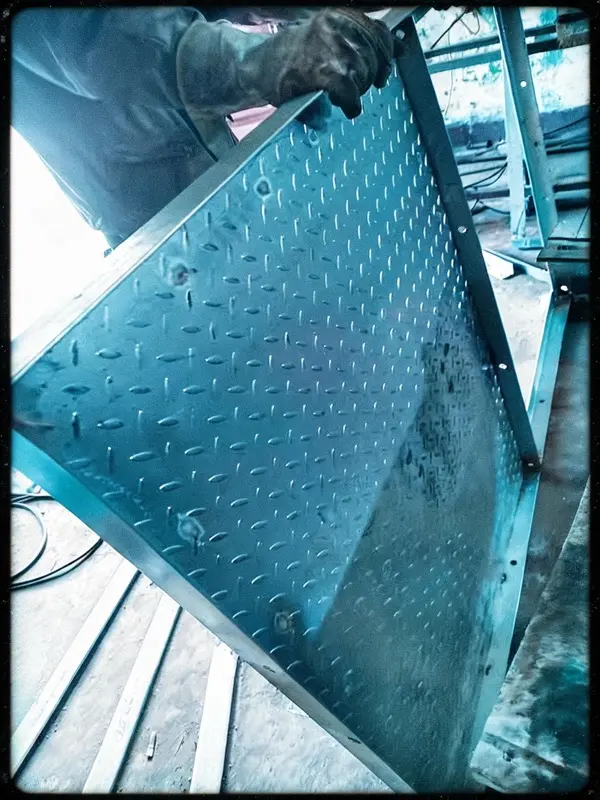

Rest Platform
Landing and intermediate platforms at ≤25 m intervals, decked in chequer plate with kick plate and 1.1 m guardrail.
Walkway & Handrail
Platform-to-platform walkways with double handrail, toe plate and optional fall-arrest line for long roof runs.
Safety Gate
Self-closing gates that swing shut automatically at every platform exit, bolt-on to the platform frame.
Specifications
Cat Ladder Platform Specifications
Every cat ladder with platform is made-to-order with the engineered parameters below — measured to your climb height, stile spacing and wall offset.
Get My Factory Quote| Specification | Value |
|---|---|
| Material | Q235B HDG 85–100 µm · SS304 · SS316 |
| Rung Load | 1.5 kN per rung |
| Rung Spacing | 225–230 mm |
| Cage Start | Φ700 mm from 2.2 m above base |
| Platform Width | 600 / 800 / 1000 mm options |
| Fixing Spacing | ≤1500 mm centres |
| Max Single Section | 25 m (rest platforms beyond) |
| Finish | HDG ISO 1461 · acid-pickled stainless |
| Standards | OSHA 1910.28 · EN ISO 14122-4 · BS 4211 · AS 1657 |
Compliance Docs: MTC & DoC With Every Order
Compliance Docs with Every Order
OSHA, BS 4211 & EN ISO 14122 compliant — order-level DoC and full documentation, no chasing paperwork after delivery.
- DoC — Declaration of Conformity
To OSHA 1910.28 / EN ISO 14122-4 / BS 4211 as specified
- MTC 3.1 Material Certificate
EN 10204 3.1 for Q235B / SS304 / SS316
- Structural Calculation Sheet
Engineer-signed for the full platform arrangement
Maker-Direct Cat Ladder Supplier
Cat Ladder With Platform Supplier — 20+ Years Manufacturing
Since 2004, Dengtai has fabricated cat ladders with platform in our Shijiazhuang plant and exported them to 50+ countries — tanks, silos, roof access and plant rooms, all with custom heights and configs.
- Custom heights, custom configs
Cage, platform, walkway and gate combos matched to each site layout
- Export-tested logistics
EXW / FOB / CIF, container knock-down or fully assembled
- Engineer-reviewed drawings
Free drawing review on every quote before fabrication
Factory-Direct Pricing
Factory-Direct Cat Ladder With Platform
Factory-direct pricing, 15–25 day production, quote within 24 hours. No distributor markup, no hidden fees.
Factory-Direct
No distributor markup — quote direct from the Shijiazhuang production floor.
24h Itemized Quote
Material, fabrication, finishing, packaging — line by line, with free drawing review.
15–25 Day Production
In-house fabrication and HDG line; trial-assembled and jig-checked before dispatch.
Get a Cat Ladder With Platform Quote
Get a Cat Ladder With Platform Quote
Free quote in 24 hours + free compliance kit with every order. Tell us your climb height and platform config — we handle the engineering.
- 24h itemized quote
- Free drawing review
- DoC, MTC & structural calcs included
