Factory-Direct Cat Ladder With Cage

Cat Ladder With Cage

Cat ladders with safety cage; BS 4211 and EN ISO 14122 compliant. Hooped cage from Φ700 mm, 1.5 kN rated rungs, factory-direct with a 24-hour quote and full compliance docs.

Get My Factory Quote Chat on WhatsApp
OSHA 1910.28 EN ISO 14122-4 BS 4211 DoC & MTC Included
Cat ladder with cage installed on an industrial roof
20+

Years Manufacturing

50+

Countries Exported

24h

Quote Response

20+

Years Manufacturing

Cat Ladder With Cage — Configuration Options

Cat Ladder With Cage, Configured for Every Climb

One caged cat ladder, configured around your access: safety cage, landing platform, walkway and gate — all fabricated to OSHA 1910.28, BS 4211 and EN ISO 14122-4 geometry. Retrofit access after handover always costs more than specifying it correctly at tender stage.

With Safety Cage

Hooped cat ladder safety cage from Φ700 mm, hoops at ≤1500 mm strapped to the stiles. The standard caged vertical climb per OSHA 1910.28.

With Landing Platform

Intermediate rest platforms break climbs over 25 m; the cage continues through the platform, with platform spacing per the governing standard.

With Walkway & Gate

Horizontal walkway and self-closing safety gate for tank-top and roof access. The gate swings to guard the opening and match stile spacing.

Custom Caged Systems

Bespoke hoop diameter, twin hoops, tie-off rails and material swaps (SS304/SS316, GRP) to your drawing. Free drawing review before you buy.

Cat Ladder Safety Cage — Dimensions & Ratings

Cat Ladder Safety Cage Specifications

Every caged cat ladder is engineered around the parameters below. Hoop diameter, start height and spacing follow BS 4211 / EN ISO 14122-4 with OSHA 1910.28 fall-protection geometry, machined in our Shijiazhuang factory.

  • Hoops begin at 2.2 m

    Cage protection starts above the base so boarding and exit stay clear

  • 1.5 kN per-rung rating

    Stiles, rungs and cage straps rated to the same load as the climb

  • Grade-matched to your site

    Q235B HDG 85–100 µm, SS304/SS316 with grade verification, or GRP/FRP for corrosive atmospheres

SpecificationValue
ConfigurationVertical cat ladder with safety cage
Cage Hoop DiameterΦ700 mm standard · Φ800 mm custom
Hoop Start Height2.2 m above base
Hoop Spacing≤1500 mm centres, longitudinally strapped
Rung Spacing225–230 mm centres
Rung Load Rating1.5 kN per rung
Fixing Spacing≤1500 mm to structure
Max Single Section25 m; rest platforms for higher climbs
MaterialQ235B HDG · SS304 · SS316 (grade verificationed)
StandardsOSHA 1910.28 · EN ISO 14122-4 · BS 4211

Compliance Docs: DoC, MTC & Structural Calcs With Every Order

Cat Cage Ladder Compliance Docs, Included

OSHA, BS 4211 & EN ISO 14122 compliant; order-level DoC and full docs. No chasing paperwork after delivery — every caged cat ladder ships with its compliance file.

  • DoC — OSHA 1910.28, BS 4211 & EN ISO 14122-4

    Declaration of Conformity to the standard that governs your site

  • MTC 3.1 Material Certificate

    EN 10204 3.1 for Q235B / SS304 / SS316 with grade verification reports

  • Structural Calculation Sheet

    Engineer-signed for the caged ladder, hoops and bracket arrangement

View Compliance Standards

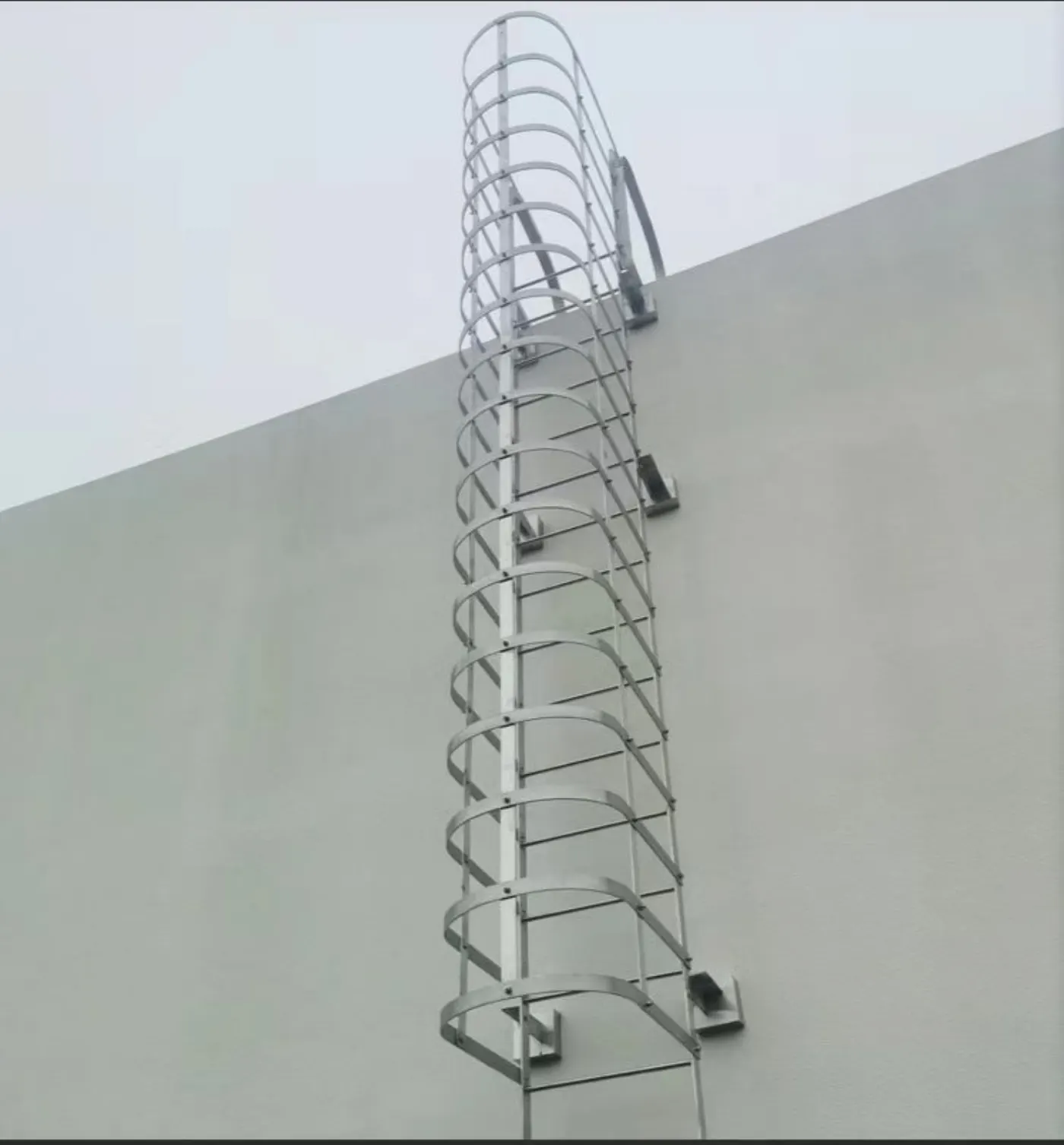

Cat ladder with cage hoops in galvanized blue finish

20+ Years Manufacturing Across 50+ Countries

Cat Ladder With Cage, 20+ Years Manufacturing

From tank farms and silo complexes to warehouse roofs and heavy industrial plant, Dengtai has supplied caged cat ladders since 2004 — exported to 50+ countries, every one shipped with the same compliance file.

20+

Years Manufacturing

50+

Export Countries

2004

Founded

View Case Studies
Caged cat ladder project delivered to a heavy industry site

Factory-Direct Pricing, Quote Within 24 Hours

Factory-Direct Cat Ladder With Cage

Factory-direct pricing, 15–25 day production, quote within 24 hours. No distributor markup — you deal with the production floor.

Factory-Direct

Pricing straight from the Shijiazhuang factory. No importer or dealer mark-up on caged systems.

Itemized Quote in 24h

Material, cage fabrication, galvanizing, packaging — line by line within 24 hours, with free drawing review.

Compliance Kit Free

DoC, MTC 3.1 and structural calcs included with every order at no extra charge.

Factory-direct, itemized ex-works quotes in 24 hours — material, machining, finishing and packaging line by line, typically well below US catalog equivalents. See our price guide for what drives cat ladder cost per metre. Shipment EXW, FOB or CIF, knocked down or fully assembled in container.

Get a Cat Ladder With Cage Quote

Get a Cat Ladder With Cage Quote

Tell us your climb height, whether the run exceeds 25 m, and the material grade — we handle the cage geometry. Free itemized quote in 24 hours, with compliance docs on every order.

  • Quote within 24 hours
  • Free drawing review
  • DoC, MTC & structural calcs included
+ More specifications (height, quantity, cage, standard)

Quote within 24 hours · Free drawing review · No obligation

Your info is safe. No spam, unsubscribe anytime. Privacy policy

Cat Ladder With Cage FAQ

When is a cat ladder with cage required?
A cat ladder safety cage is required on vertical climbs above the fall-protection threshold where a fall-arrest rail is not used. Under OSHA 1910.28, fall protection is required above 24 ft (7.3 m); EN ISO 14122-4 applies fall protection from 3 m. We fabricate hooped cages to the standard that governs your site.
What are the cat cage ladder dimensions?
Standard cage hoops are Φ700 mm and start at 2.2 m above the base, spaced at no more than 1500 mm and strapped longitudinally to the stiles. Rungs sit at 225–230 mm centres with a 1.5 kN per-rung rating, and fixing brackets go at ≤1500 mm spacing.
Can I add a platform and gate to a caged cat ladder?
Yes — configurations are modular. We add intermediate rest platforms for climbs over 25 m, plus walkways, handrails and self-closing safety gates to the same caged system. Send your access requirement and we will draft a single caged layout for free drawing review.
Do caged cat ladders come with compliance documents?
Every caged cat ladder order ships with a Declaration of Conformity (DoC) to OSHA 1910.28 / EN ISO 14122-4 / BS 4211, an MTC 3.1 material certificate, and engineer-signed structural calculation sheets — at no extra cost.
How long does a caged cat ladder take to deliver?
Quote in 24 hours; production runs 15–25 working days from the approved drawing, then shipment goes EXW, FOB or CIF — knocked-down for container economy or fully assembled. Hoops, straps and brackets travel with the ladder as one documented kit, marked for assembly.
Can you build caged ladders to non-standard climb heights?
Custom heights are engineered — hoops still start at 2.2 m with ≤1500 mm spacing, and climbs beyond 25 m are split with rest platforms. The drawing review is free within the 24-hour quote, and Φ800 mm custom hoops are available where access needs differ.
Can we order replacement brackets and gates later?
Yes — spare rungs, brackets and safety gates stay available after delivery, so a damaged part never means replacing the ladder. Our parts and spares page lists the range, all quoted with the same 24-hour response in the material grade of your cage.
How are the cage hoops fixed to the ladder?
Hoops are Φ700 mm (Φ800 mm custom), starting 2.2 m above the base and spaced at no more than 1500 mm, strapped longitudinally to the stiles. Fixing brackets to the structure also go at ≤1500 mm spacing, all in the same Q235B HDG or stainless grade as the ladder.
Which material grade suits a caged ladder in a corrosive site?
Q235B hot-dip galvanized steel is the standard cage material for exterior climbs. SS304 suits chemical and washdown plants, SS316 marine and coastal exposure — hoop, strap and bracket grades all match the ladder so the cage is not the weak link.
