Factory-Direct Substation Cat Ladders

Substation Cat Ladder

Cat ladders for substations, cooling towers and power plant access — factory-direct with compliance docs and a quote within 24 hours. OSHA 1910.28 & EN ISO 14122-4 compliant.

Get My Substation Cat Ladder Quote Chat on WhatsApp
OSHA 1910.28 EN ISO 14122-4 MTC & DoC Included Free Quote
Substation cat ladder galvanized steel detail for power plant access
20+

Years Manufacturing

50+

Countries Exported

24h

Quote Response

20+

Years Manufacturing

Substation Cat Ladder — Access for Power & Utility Sites

Substation Cat Ladder for Power Plants & Cooling Towers

Fixed steel cat ladders for the heights every power site needs — substation busbars, switchgear, transformer gantries, cooling tower decks and roof plant. Factory made, OSHA and EN ISO compliant. An access route that fails inspection means stop-work orders and retrofit scaffolding at site rates.

Substation Access Cat Ladders

Fixed ladders to busbars, switchgear and transformer access levels. HDG steel with safety cage or fall-arrest as the climb height requires.

Cooling Tower Cat Ladders

Cat ladders for cooling tower fan decks, fill decks and distribution headers, with corrosion protection matched to the water chemistry on site.

Power Plant Cat Ladders

Access for turbine hall roofs, plant rooms and outdoor switchyards. Custom heights, stile spacing and fixing surfaces to your drawing.

Cat Ladder for Substation — Configured to the Site

Cat Ladder for Substation: Cage, Platform & Standoff Options

Every substation cat ladder is built to the exact height, fixing surface and fall-protection requirement of the asset. Choose the configuration that matches your inspection and maintenance routine.

  • Safety cage & hoops

    Full-height HDG hoops where the unguarded climb exceeds the standard limit

  • Intermediate platforms

    Landings at the maximum climb interval per OSHA or EN ISO 14122

  • Wall standoff brackets

    150 / 200 / 250 mm off concrete or steelwork, bespoke offsets machinable

  • Custom height & material

    Q235B HDG, SS304 or SS316 to your drawing, made in our Shijiazhuang factory

Caged substation cat ladder for cooling tower and power plant access

Specifications

Substation Cat Ladder Specifications

Every substation cat ladder is made-to-order with the engineered parameters below — measured to your height, stile spacing and wall offset.

Get My Substation Cat Ladder Quote
SpecificationValue
Ladder MaterialQ235B HDG 85–100 µm · SS304 · SS316
Rung Spacing250–300 mm centres
Stile Width400–600 mm typical
Wall Standoff150 / 200 / 250 mm standard
Safety CageFull-height HDG hoops (optional)
Load Rating1.5 kN per rung
FinishHDG ISO 1461 · acid-pickled stainless
StandardsOSHA 1910.28 · EN ISO 14122-4 · BS 4211

Compliance Docs: MTC & DoC With Every Order

Compliance Docs with Every Substation Cat Ladder Order

No chasing paperwork after delivery — every substation cat ladder order ships with its full compliance file, at no extra cost.

  • DoC — OSHA 1910.28 & EN ISO 14122-4

    Declaration of Conformity to the relevant standard

  • MTC 3.1 Material Certificate

    EN 10204 3.1 for Q235B / SS304 / SS316

  • Structural Calculation Sheet

    Engineer-signed for the ladder, cage and bracket arrangement

Substation cat ladder compliance components and fixing kits

Factory-Direct Pricing & Proven Projects

Factory-Direct Substation Cat Ladder Pricing

Buy cat ladders for substations direct from the factory — itemized pricing in 24 hours and 15–25 working day production. Trusted on industrial projects across 50+ countries.

Factory-Direct

No distributor markup. Quote direct from the production floor.

Itemized Quote

Material, cage, platforms, finish and packing — line by line, no hidden fees.

15–25 Day Production

Caged and platform builds scheduled to your site programme.

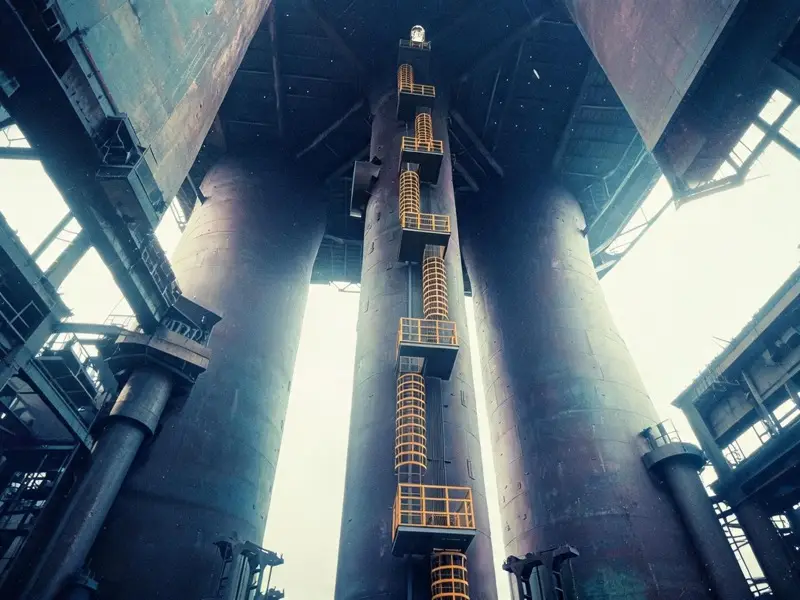

Substation cat ladder installed on heavy power plant steelwork

Proven in Power & Utility Projects

Substation and cooling tower cat ladders are a daily build for our single-category factory — delivered to power sites worldwide, factory-built since 2004.

  • industrial projects delivered worldwide
  • 50+ countries exported worldwide
  • Caged & platform builds to EN ISO 14122-4

Get a Substation Cat Ladder Quote

Get a Substation Cat Ladder Quote

Free quote in 24 hours + free compliance kit with every order. Tell us the access point, height and material — we handle the rest.

  • 24h itemized quote
  • Free drawing review
  • DoC, MTC & structural calcs included
+ More specifications (height, quantity, cage, standard)

Free quote · Free drawing review · No obligation. Your info is safe, no spam.

Substation Cat Ladder FAQ

What is a substation cat ladder?
A substation cat ladder is a permanently fixed steel access ladder installed for climbing to busbars, switchgear, transformers, cooling tower decks and roof plant inside power facilities. We build them in Q235B hot-dip galvanized steel or SS304/SS316 stainless, to OSHA 1910.28 and EN ISO 14122-4.
Do substation cat ladders need a safety cage?
When the climb exceeds the standard's unguarded limit, a safety cage or fall-arrest rail is required. We supply full-height galvanized hoops on caged substation cat ladders and can add intermediate platforms at the heights specified by OSHA or EN ISO 14122.
What standards apply to cooling tower cat ladders?
Cat ladders for cooling towers are built to the same standards as the rest of the site: OSHA 1910.23/1910.28, EN ISO 14122-4 and BS 4211. Every order ships with a Declaration of Conformity, an MTC 3.1 material certificate and structural calculation sheets.
Can you make a cat ladder to my substation drawing?
Yes — all cat ladders are fabricated to order in our Shijiazhuang factory. Send your height, stile spacing and fixing surface and we confirm the build and quote within 24 hours, with 15–25 working days production.
Can I order one ladder for a single substation bay?
Trial orders start from 1 unit — a single transformer or switchgear ladder is a normal order. Utility framework programs are quoted as container mixes per load plan, mixing ladders, cages, gates and spares across the sites in your program. Every build is still made to your drawing.
What installation support is provided?
Anchor plans and installation drawings are included with every order, and bolt-together sections mean no welding on site. Assemblies are trial-assembled where specified, so installation days stay predictable when access windows are short. Standoff brackets at 150, 200 or 250 mm set the rungs clear of busbar enclosures and gantry steel.
Can you match unusual gantry or busbar heights?
Custom heights are engineered to order — send the climb height to your busbar, switchgear or cooling tower deck level and we build to it in single or bolt-together sections. Drawing review is free within the 24-hour quote. Full-height HDG cage hoops are added where the climb requires fall protection.
What are the typical dimensions for power site ladders?
Stiles run 400–600 mm wide with rungs at 250–300 mm centres and a 1.5 kN per-rung load rating. Optional full-height HDG cage hoops add fall protection, and standoff brackets hold the ladder 150–250 mm clear of the structure. The finish is HDG to ISO 1461 or acid-pickled stainless.
Which material suits power and utility sites?
Q235B hot-dip galvanized steel to ISO 1461 is the standard build for outdoor substations and cooling towers, with corrosion protection matched to the water chemistry on site. SS304 and SS316 stainless serve areas where corrosion risk runs higher; the MTC 3.1 certificate confirms the grade delivered.
